BMW F-Series Bible: Diagnostic, Maintenance & Ownership

🚗 COVERED ENGINES:

B38 (1.5L I3 Turbo), N13 (1.6L I4 Turbo), N20 / N26 (2.0L I4 Turbo), B48 (2.0L Modular I4 Turbo), N55 (3.0L I6 Turbo), B58 (3.0L Modular I6 Turbo), N63 / N63TU (4.4L Twin-Turbo V8), N74 (6.6L Twin-Turbo V12), B37 / N47 / B47 (Diesel I3/I4), N57 (3.0L I6 Diesel).

📚 WHAT MAKES THIS BLUEPRINT UNMATCHED:

• 🛠️ Save $1,000–$3,500 Per Repair: Clear, step-by-step instructions, difficulty ratings, required tools, and exact OEM part numbers so you can skip the stealership with total confidence.
• 🛑 Prevent Catastrophic Failures: Deep-dive failure mechanics for all 10 engines, including timing guide shattering, OFHG belt-shred destruction, valve stem seal hardening, and rear timing chain snap.

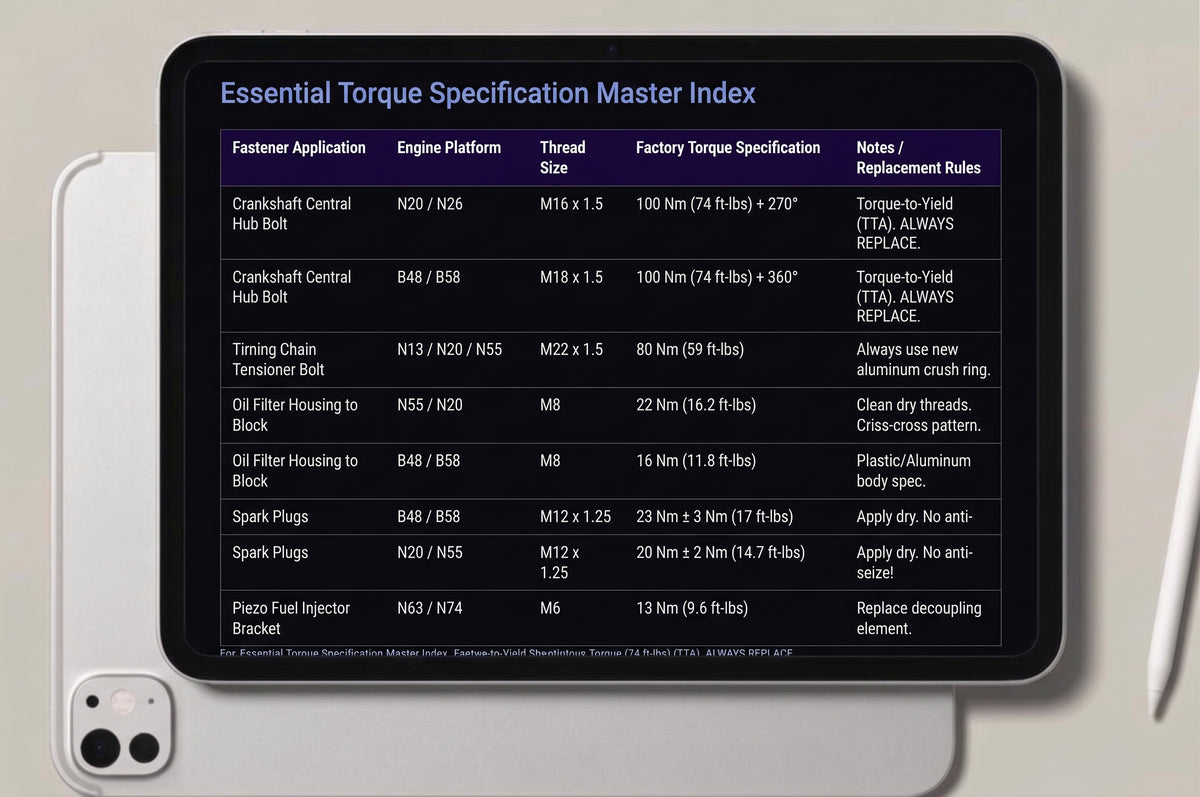

• 📊 Factory Master Torque & Fluid Matrix: Complete torque-to-yield (TTY) tables, single-use aluminum fastener rules, and real-world fluid interval schedules for every engine platform (LL-01, LL-04, ZF Lifeguard 8).
• 💻 Pro-Grade Software Diagnostics: OBD2/ISTA+ fault codes, Live Data parameters, injector coding, DPF forced regen, and the mandatory oil-priming execution steps for every engine covered.

⚠️ KNOWN WEAK POINTS & FAILURE MECHANICS

🔧 STEP-BY-STEP DIY REPAIRS INCLUDED:

1. Coolant Vent Line Upgrade [p. 6] (Save up to $400)
2. Oil Filter Housing Module Overhaul [p. 7] (Save up to $1,100)
3. Timing Chain Tensioner Bolt Service [p. 11] (Save up to $350)
4. High-Pressure Fuel Pump (HPFP) Replacement [p. 12] (Save up to $900)
5. Turbocharger Oil Feed Line & Heat Shield Overhaul [p. 13] (Save up to $1,250)
6. Complete Timing Chain & Oil Pump Module Overhaul [p. 17] (Save up to $2,750)
7. Electronic Wastegate Actuator (EWG) Calibration & Linkage Repair [p. 18] (Save up to $650)
8. Oil Filter Housing Gasket Replacement [p. 27] (Save up to $1,500)
9. Billet Aluminum Oil Filter Housing Module Upgrade [p. 22] (Save up to $2,220)
10. Heat Management Module (HMM) Replacement [p. 23] (Save up to $1,400)
11. OFHG Service & Front Crank Seal Guard Installation [p. 27] (Save up to $1,190)
12. Pierburg Water Pump & Thermostat Replacement [p. 28] (Save up to $1,720)
13. Valve Cover & Integrated PCV Replacement [p. 29] (Save up to $760)
14. PCV Diaphragm Repair Without Valve Cover Removal [p. 33] (Save up to $450)
15. Secondary Cooling Loop Service & Cap Renewal [p. 34] (Save up to $300)
16. Corrective Stuck Oil Filter Extraction Protocol [p. 35] (Save up to $600)
17. Index 12 Piezo Injector Installation & Coding [p. 39] (Save up to $1,800)
18. Hot-V Braided Stainless Coolant Line Upgrade [p. 40] (Save up to $1,400)
19. Valve Stem Seal Renewal – Engine-In-Car Method [p. 41] (Save up to $3,500)
20. Outboard High-Pressure Fuel Pump (HPFP) Replacement [p. 45] (Save up to $1,600)
21. Wastegate Actuator Renewal & Pre-load Calibration [p. 46] (Save up to $1,200)
22. EGR Cooler & Valve Assembly Overhaul [p. 50] (Save up to $950)
23. DPF Differential Pressure Sensor & Hose Service [p. 51] (Save up to $400)
24. CP4 Pump Preventative Metering Valve Inspection [p. 52] (Save up to $350)
25. Intake Manifold Decarbonization & Head Walnut Blasting [p. 56] (Save up to $1,100)
26. Swirl Flap Mechanism Service & Delete Protocol [p. 57] (Save up to $700)

📖 COMPLETE TABLE OF CONTENTS:

Section I: Gasoline Engines (B38, N13, N20/N26, B48, N55, B58, N63/N63TU, N74) • Section II: Diesel Engines (B37/N47/B47, N57) • Section III: Diagnostics & Maintenance – Master Fastener Torque Reference, BMW Diagnostic Software Suite Setup (ENET, ISTA+, BimmerLink/BimmerCode), and the Ultimate F-Series Preventive Maintenance Schedule [p. 58].

📦 INSTANT DIGITAL DOWNLOAD

Get immediate, lifetime access to this PDF Blueprint on any device (Smartphone, Tablet, PC). Keep it saved on your phone or garage workbench for instant reference whenever you work on your vehicle!
