BMW M-Power Bible: Diagnostic, Maintenance & Ownership

🚗 COVERED ENGINES:

S54 (3.2L I6), S62 (5.0L V8), S85 (5.0L V10), S65 (4.0L V8), S55 (3.0L Twin-Turbo I6), S63 / S63TU (4.4L Twin-Turbo V8), S58 (3.0L Twin-Turbo I6), S68 (4.4L Twin-Turbo V8 Mild-Hybrid).

📚 WHAT MAKES THIS BLUEPRINT UNMATCHED:

• 🛠️ Save $1,500–$5,000 Per Repair: Clear, step-by-step instructions, difficulty ratings, required tools, and exact OEM part numbers so you can skip the stealership with total confidence.
• 🛑 Prevent Catastrophic Failures: Deep-dive failure mechanics for all 8 motorsport engines, including VANOS hub shear, rod bearing clearance breakdown, throttle actuator gear stripping, crank hub slip, Hot-V coolant leaks, and 48V mild-hybrid isolation faults.
• 📊 Factory Master Torque & Fluid Matrix: Never strip an aluminum bolt or guess 10W-60 specs again — complete torque-to-yield (TTY) tables, stretch bolt rules, and custom fluid interval schedules included.
• 💻 Pro-Grade Software Diagnostics: Learn how to read Live Data, run VANOS system tests, execute throttle actuator sweeps, register injectors, and reset adaptations using ISTA+, INPA, and BimmerLink.

🚨 CRITICAL ENGINE SAVING PROCEDURES INCLUDED:

The Mandatory Motorsport Oil Priming Routine: Learn the exact quad-crank procedure required after servicing the Oil Filter Housing or Rod Bearings on S54/S65/S85/S55/S58 engines to prevent instant rod bearing starvation.

High-Pressure & 48V Safety Protocols: How to safely depressurize 350-bar direct injection systems and isolate high-voltage/48V mild-hybrid components before servicing the engine bay on modern M models.

⚠️ KNOWN WEAK POINTS & FAILURE MECHANICS

🔧 STEP-BY-STEP DIY REPAIRS INCLUDED:

1. Double VANOS Overhaul & Bulletproof Re-drilled Hub Installation [p. 5] (Save up to $1,800)
2. Solenoid Pack Re-soldering & Sealing Ring Renewal [p. 6] (Save up to $650)
3. Secondary Air System Carbon Port Cleaning & Flexible Cable Porting [p. 9] (Save up to $1,200)
4. VANOS Solenoid Board Re-sealing & Accumulator Retrofit [p. 10] (Save up to $950)
5. In-Car Rod Bearing Overhaul with BE/WPC Bearings & ARP Bolts [p. 13] (Save up to $3,200)
6. Throttle Valve Actuator Gear & Circuit Board Overhaul [p. 14] (Save up to $1,400)
7. Upgraded CNC Brass Gear Throttle Actuator Overhaul [p. 17] (Save up to $1,400)
8. Idle Control Valve (ICV) Cleaning & Actuator Renewal [p. 18] (Save up to $600)
9. Keyed / Captured Bulletproof Crank Hub Installation [p. 21] (Save up to $2,800)
10. Top-Mounted Charge Air Cooler (CAC) Replacement [p. 22] (Save up to $1,100)
11. Index 12 Direct Injector Overhaul & ISTA Energy Coding [p. 25] (Save up to $2,200)
12. Hot-V Braided Stainless Steel Coolant Line Upgrade [p. 26] (Save up to $1,500)
13. Secondary Low-Temp Radiator Swap & Protection Guard Fitting [p. 29] (Save up to $950)
14. High-Pressure Fuel Pump (HPFP) & Cam Follower Swap [p. 30] (Save up to $1,250)
15. Electric VANOS Servo Actuator Replacement & Alignment [p. 33] (Save up to $1,600)
16. 48V High-Voltage Safety Isolation & Service Disconnect Procedure [p. 34] (Save up to $500)

📖 COMPLETE TABLE OF CONTENTS:

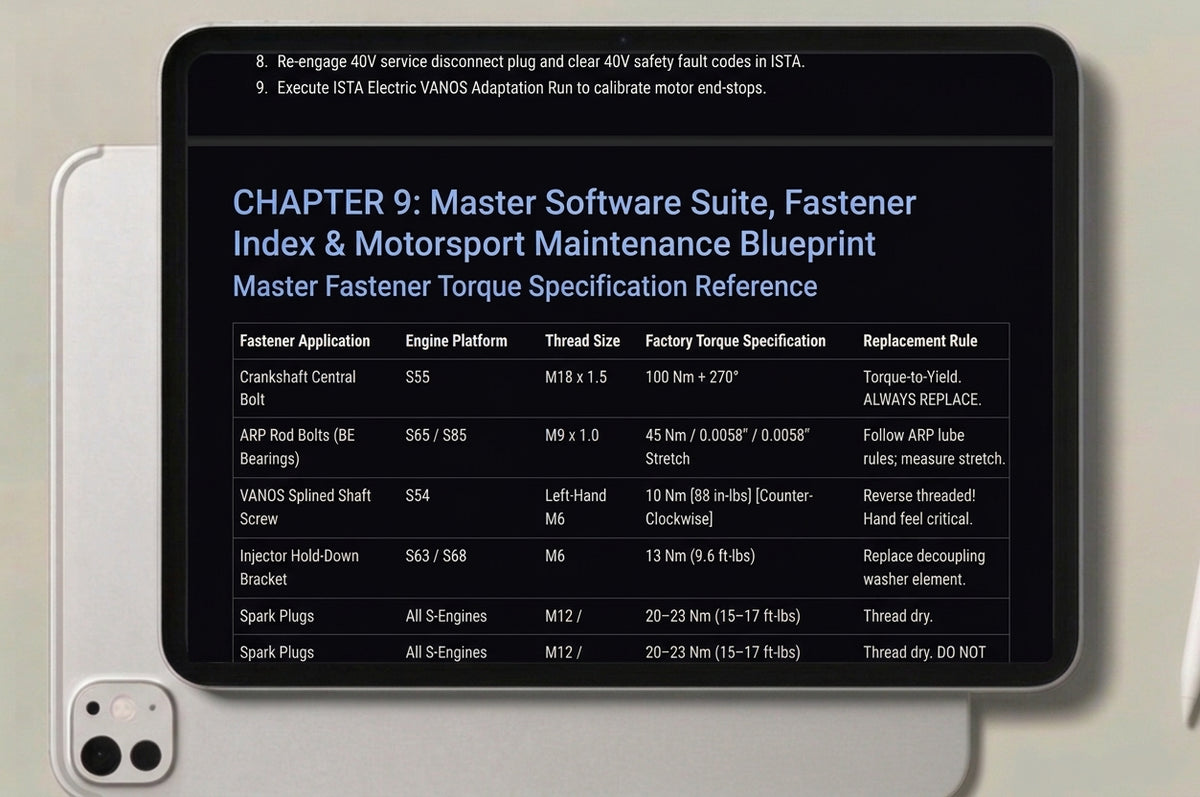

Section I: Naturally Aspirated Motorsport Engines (S54, S62, S85, S65) • Section II: Turbocharged Motorsport Engines (S55, S63/S63TU, S58, S68) • Section III: Motorsport Diagnostics & System Maintenance – Master Fastener Torque Reference, BMW Diagnostic Software Suite Setup (ISTA+, INPA, Tool32, ENET/ICOM NEXT), the Mandatory Motorsport Oil Priming Procedure, and the Ultimate M-Power Preventive Maintenance Schedule [p. 36].

📦 INSTANT DIGITAL DOWNLOAD

Get immediate, lifetime access to this PDF Blueprint on any device (Smartphone, Tablet, PC). Keep it saved on your phone or garage workbench for instant reference whenever you work on your vehicle!
